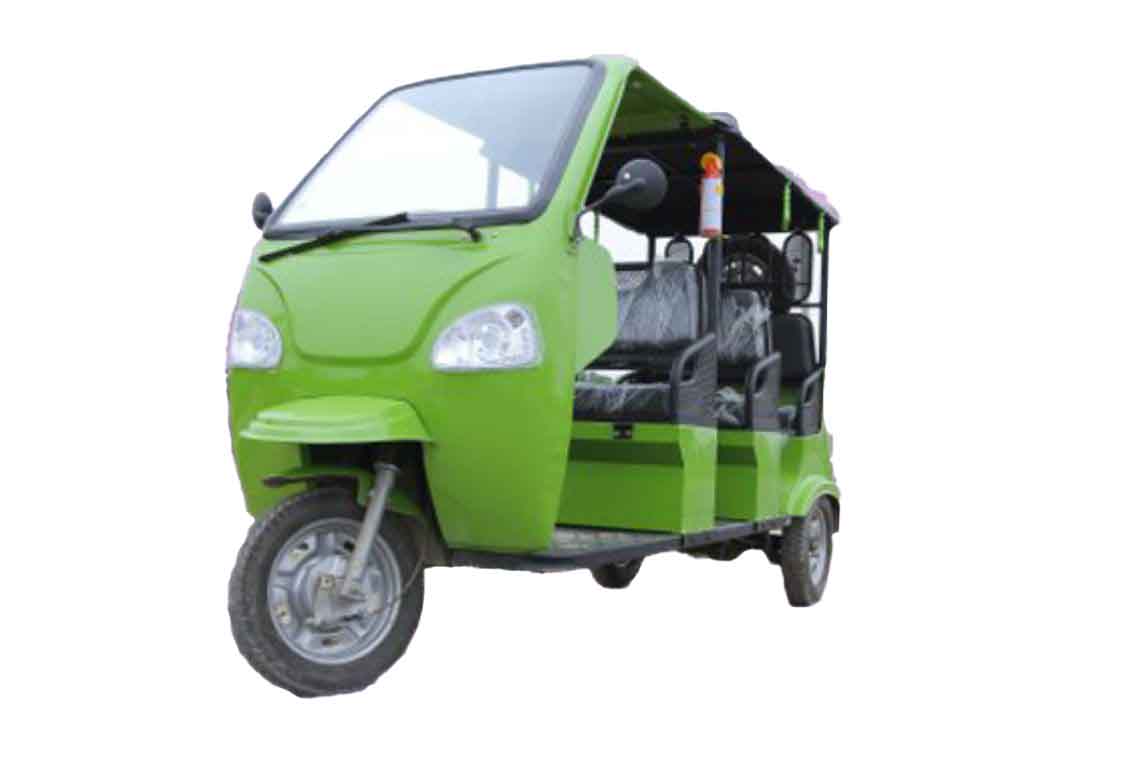

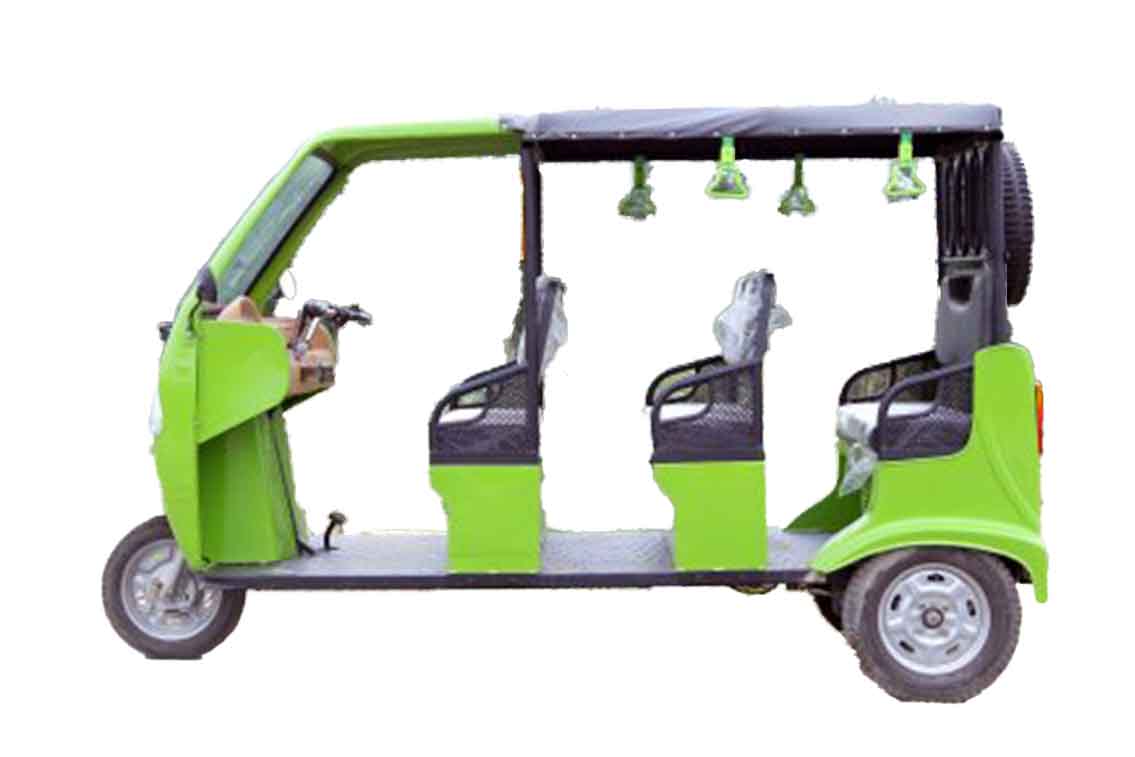

D3WP500EL-AL

DION PASSENGER

Providing you the best range of passenger high-power e-rickshaw (2000W), passenger basic e-rickshaw, passenger front-facing e-rickshaw, passenger standard e-rickshaw and passenger auto e-rickshaw with effective & timely delivery.





Electric trucks provide businesses with many benefits that primarily aim for the long run. EV trucks do not require fuel, which is already one of the biggest advantages, due to fuel cost and effect on nature. Driving electric trucks reduces CO2 emissions and actually offers better performance for drivers and businesses.


SPECIFICATION


Table Example 3
BrandDion
Model Name/NumberD3WP500EL-AL
Statewise Approvals AvailableTamil Nadu, Delhi, Haryana, Punjab, UP, Uttrakhand, Andhra Pradesh, Telangana, Bihar, West Bengal, Rajasthan, MP
Vehicle Capacity5 persons
Rickshaw ColorRed Velvet, Blue cyan & Yellow meltdown
Optional FeaturesSide Curtains, Foot Mats, Cabin Light, Hand Holds, Audio/Infotainment System, Leatherette Seats
Roof TypeMild Steel
Battery/Chargerlead acid & Lithium Ferro Phosphate
Motor Power Rating2000W
Body TypeClosed
LicensedLicensed
Frame MaterialCold Rolled
Gross Vehicle Weightupto 1000 kgs
Electric Consumption5 Units
Engine DescriptionBattery Operated
Ground Clearance Chassis180 mm
Head LightHalogen (1 in no.)
Per Battery Voltage12V
SpeedometerAnalog With Trip Meter
Spring Leaves6 - Left Rear Suspension, 6 - Right Rear Suspension
Starting SystemPush Stop Start Button
SuspensionFront - Telescopic Hydraulic Shock Absorbers, Rear - Leaf Springs
Tyre FrontTVS / CEAT / Ralco
Tyre RearTVS / CEAT / Ralco
Wheel Base Dimension2150 mm
I Deal InNew Only
Country of OriginMade in India
No. of batteries required4-Lead Acid / 48V Lithum battery
KMs Driven per charge40 km/ 60 km / 80 km / 100 km / 120 km (based on battery type and capacity chosen)
Maximum Speed35 km/hr
Vehicle Dimensions (L x W x H)2720 mm x 990 mm x 1730 mm
Seating TypeAll Front Facing Seats also customizable
Drive TrainMotor & Controller Operated
Motor TypeBLDC Geared
System Voltage48V
Controller Rating48V 50A
Differential Size33 inches
Body MaterialCold Rolled
Wheel Size3.75 inch x 12 inch
No. of wheels3 + stepney
Front Brake130 mm dia (Drum type)
Rear Brake160 mm dia (Drum type)
Tail LightsLED (2 in no.s)
Front & Rear Side IndicatorsLED (6 in no.s)
Steering TypeStainless Steel Handle Bar
Rear View Mirrors2
Safety FeaturesHorn, Handbrake, Reverse Alarm, Jack, Toolkit, Fire Extinguisher, First Aid Kit
Optional AccessoriesAlloy Wheel, Fog Light, Rain Wiper, Stainless Steel Backrest, GPS, Reverse Camera with LED Screen
Handholds4
Standard RimIncluded
Advertising / Branding SpaceIncluded
CertificationsiCAT Certified
WarrantyChassis & Tyres - 24 months, Motor & Controller - 24 months
