Freedom on TWO Wheels

DION ASTA

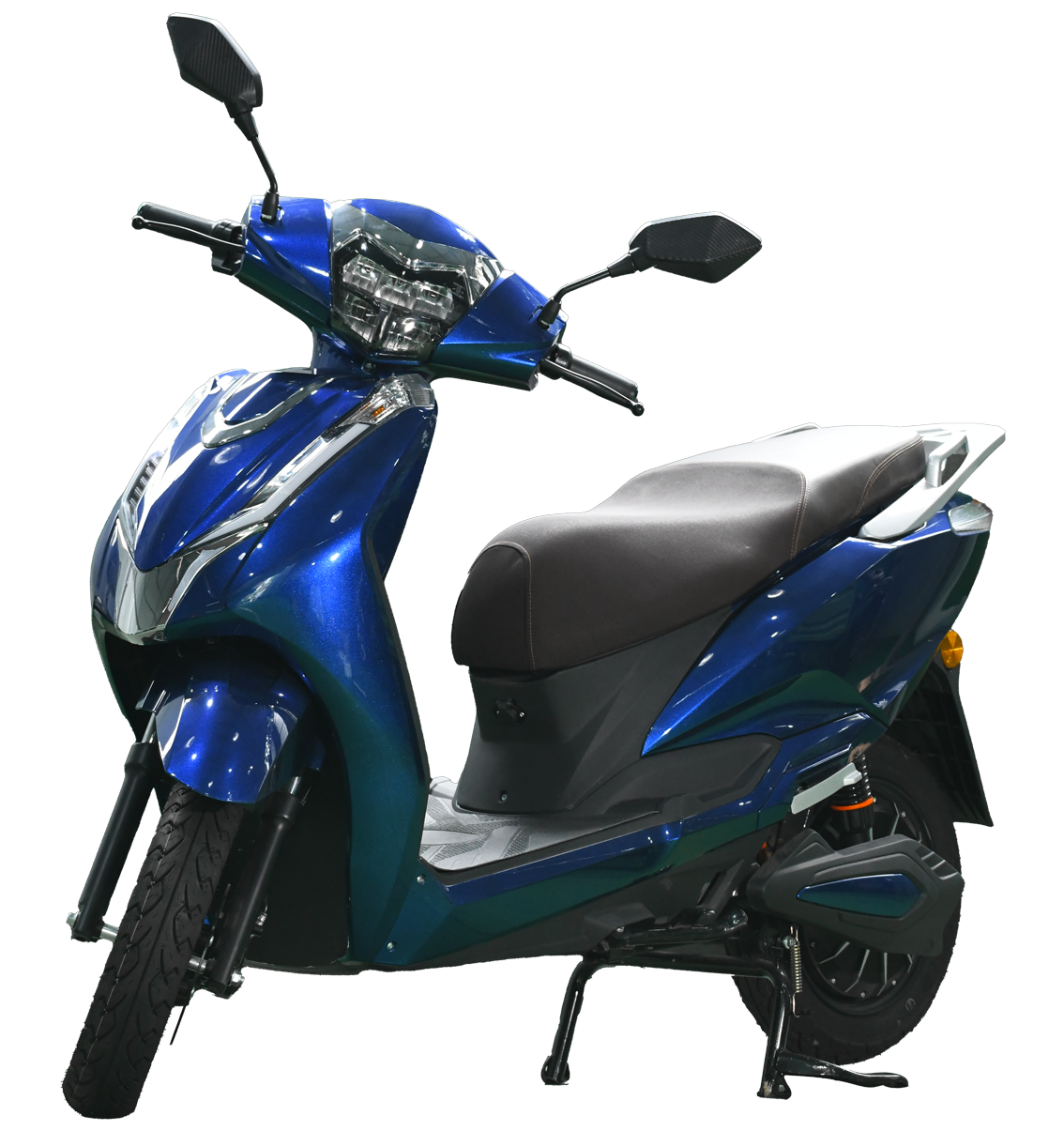

Introducing a high-performance electric scooter that redefines urban commuting. Boasting a top speed of 80 km/h, this cutting-edge vehicle effortlessly navigates city traffic while offering an impressive range of 80 km on a single charge. Its standout feature is the generously sized boot space, providing ample room for carrying essentials, making it a practical choice for daily commutes or weekend adventures.

Asta: The design of the vehicle is a modern day IC engine scooter; to make the customers feel like they ride their regular scooter which they ride for the ages in the scooter revolutions. This scooter is designed for both the average height customers as well as tall customers. The customers will fell love with the vehicle by feeling the quality of the make as well as the ride. The vehicles is fitted with a large seat where two large adults can sit comfortably without touching each other. Occasionally the parents may also carry their kid along their journey with the comfort of this large seat. In this scooter, the customers can find a deep boot where they can place their back-pack inside it. The book can easily fit two helmets of average size. The vehicle is also fitted with 5V charging socket which produces 10W of charging. The benefit of the Asta is fun in handling, surprising comfort and timeless riding pleasure.

Lightweight frame, balanced rigidity, and responsive suspension components make this bike handle like a dream. Plus, front and rear disc brakes ensure confident stops. The vehicle is fitted with Bright Led lights for the headlamp which produce wide light at city and narrow light at highways. And guess what? Maintenance is a breeze—no oil changes required!.


SPECIFICATION


Table Example 3

Motor Power: 3.0 kW at 910 rpm

Peak Power: 4.4 kW at 690 rpm

Nominal Power: 3.0 kw at 910 rpm

Voltage: 72 Volts

Torque: 31.6 N.m at 910 rpm

Starting system: Keyless

Max speed: 85 Km/ hr

Transmission: P, 1, 2 & 3. & Reverse

Length: 1840 mm

Width: 710 mm

Height: 1160 mm

Wheelbase: 1335 mm

Ground clearance: 170 mm

Seat height: 540 mm

Gross weight: 239 Kg

Unladen weight: 74 Kg

Wheel rim:Alloy
Loading capacity:164 Kg

Front: Telescopic

Rear: Spring Suspension

Front tyre: 90/90 – 12 (tubeless)

Rear tyre: 90/90 – 12 (tubeless)

Front Brake: Disc brake

Rear Brake: Disc brake

Battery type: Li-ion

Battery capacity: 3.6 KW

Charging time: 6 Hours
