Dion Loader



Electric trucks provide businesses with many benefits that primarily aim for the long run. EV trucks do not require fuel, which is already one of the biggest advantages, due to fuel cost and effect on nature. Driving electric trucks reduces CO2 emissions and actually offers better performance for drivers and businesses.

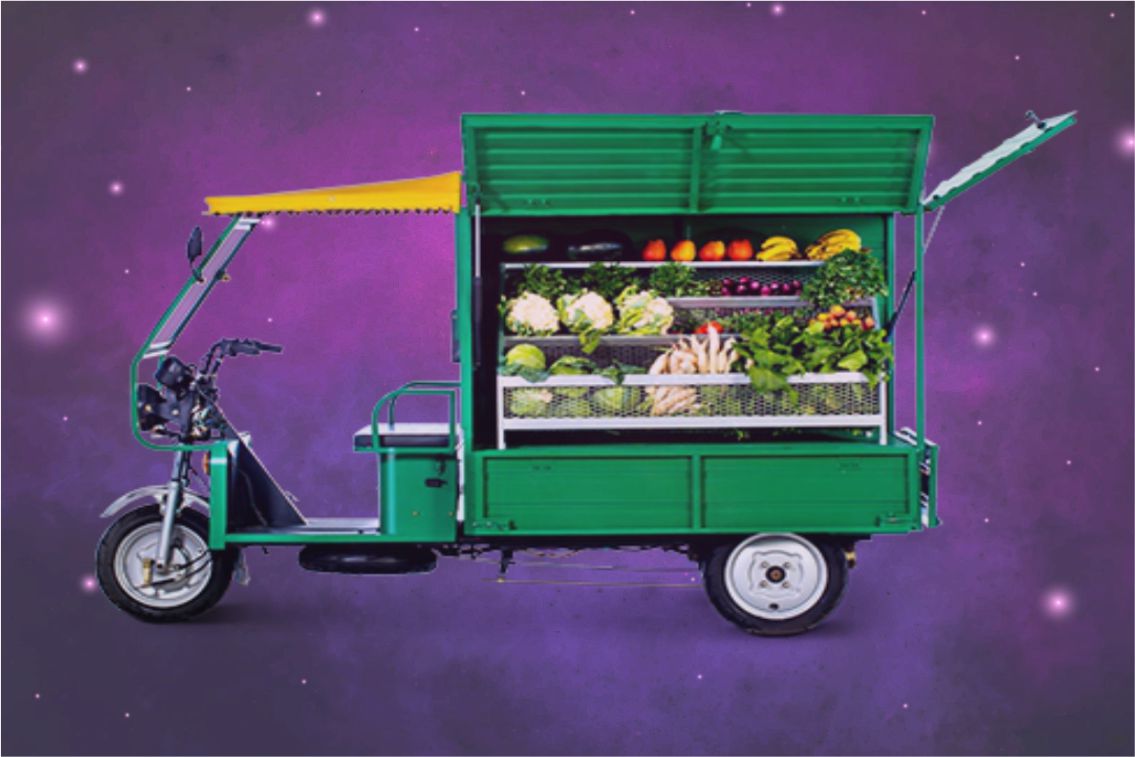

Dion Loader - D3WV500EL-AL

  1. Dion 3-wheeler E-Loader Vegetable Cart with 500Kg Capacity

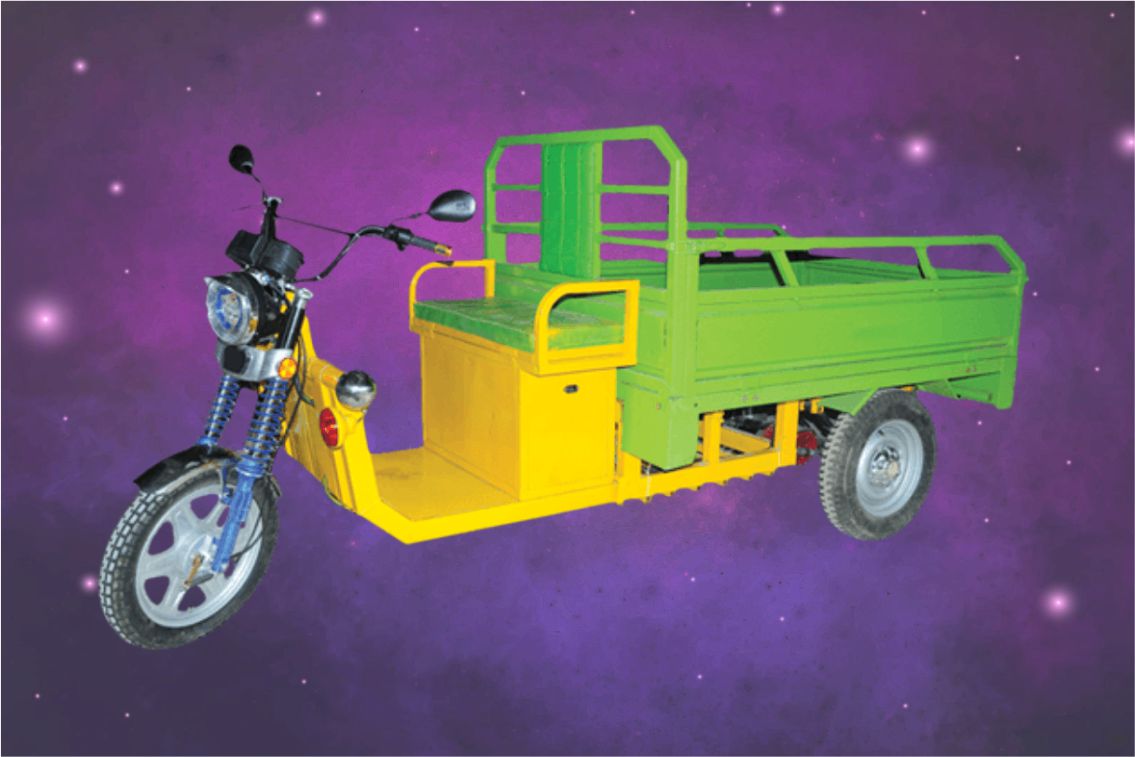

Dion Loader - D3WO500EL-NR

  1. Dion 3-wheeler E Loader with Open body and 500kg Capacity

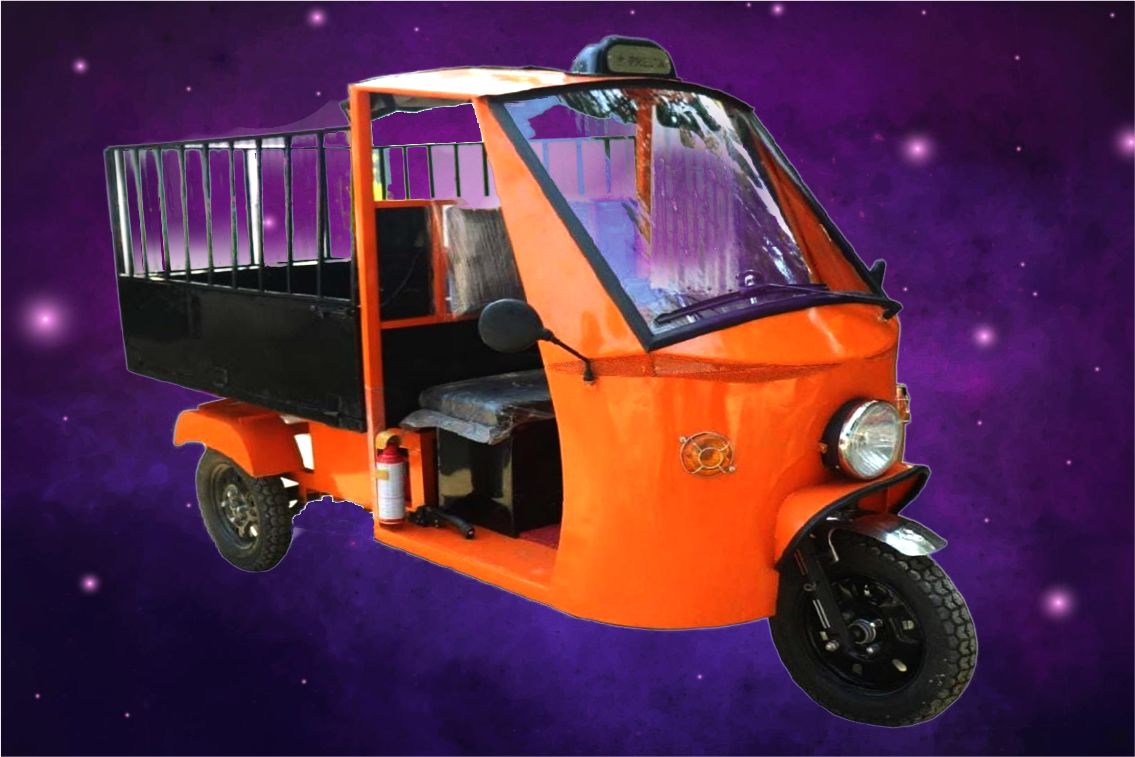

Dion Loader - D3WO500EL-EX

  1. Dion 3-wheeler E Loader with Open body with driver cabin and 500kg Capacity

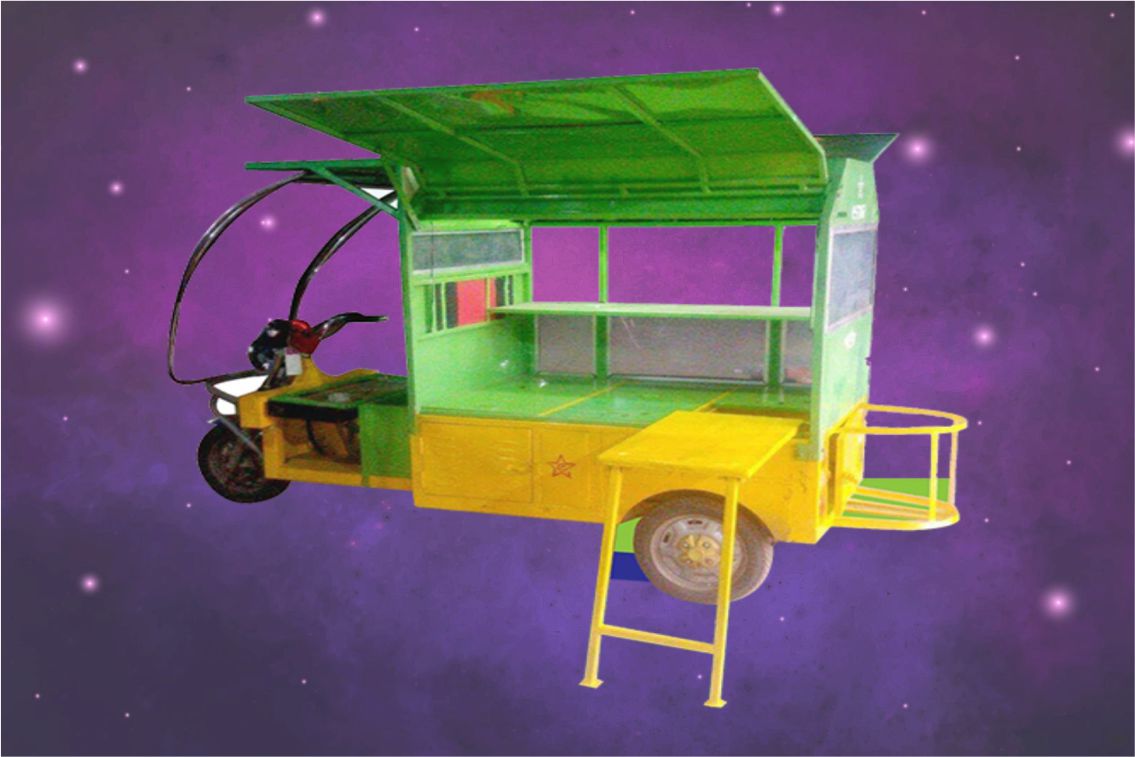

Dion Loader - D3WF500EL-AL

  1. Dion 3-wheeler E Loader food cart with 500kg Capacity
Electric trucks provide businesses with many benefits that primarily aim for the long run. EV trucks do not require fuel, which is already one of the biggest advantages, due to fuel cost and effect on nature. Driving electric trucks reduces CO2 emissions and actually offers better performance for drivers and businesses.

Table Example 3

SPECIFICATION


BrandDION
Model Name / NumberD3WF500EL
Usage/ ApplicationLoading & Delivery
Top Speed / Hr25 km/hr
Motor TypeBLDC Geared
Motor Rating1200W, 1500W and 2000W
WarrantyChassis & Tyres - 24 months, Motor & Controller - 24 months
No. of batteries required4 (Lead Acid) / 1 (Lithium Ion)
ColorRed Velvet, Blue cyan & Yellow meltdown
Body MaterialCold Rolled
Front Suspension TypeTelescopic Hydraulic Shock Absorbers
Rear SuspensionTypeLeaf Springs (6 -Left, 6- Right)
Front Brakes Type130 mm dia (Drum Type)
Rear Brake Type160 mm dia (Drum Type)
Wheel Base2160 mm
SpeedometerAnalog with Trip Meter
Country of OriginMade in India
No of Wheel3 + Stepney
Loading Capacityupto 1000 kg
Seating CapacityFor Driver only
Power SourceBattery Operated
Vehicle Dimensions (L x W x H)2790 mm x 990 mm x 1730 mm
Container Dimensions (L x W x H)5 ft x 3 ft x 1.5 ft
Gross Vehicle Weight550kg to 1200kg
Ground Clearance180 mm
KMs driven per charge40 km/60 km/ 80 km/ 100 km/ 120 km (basis battery type and capacity chosen)
Drive TrainMotor. Gear & Controller Operated
System Voltage48V
Controller Rating48V 50A
Differential Size33 inch to 42 inch
Body TypeOpen
Front TypeGlass Front
Tyre BrandTVS/CEAT/Ralco
Wheel Size3.75 inch X 12 inch & 4.25 inch X 12 inch
Standard RimIncluded
HeadlampsLED (1 in no.s)
Tail LightsLED (2 in no.s)
Front & Rear Side IndicatorsLED (4 in no.s)
Steering TypeStainless Steel Handlebar
Rear View Side Mirrors2
Advertising / Branding SpaceIncluded
Standard FeaturesHorn, Foot Mats, Cabin Light, Hand Holds, Leatherette Seats
Optional AccessoriesSide Curtains, Alloy Wheel, Audio/Infotainment System, Fog Light, Rain Wiper, GPS, Reverse Camera with LED Screen
Safety FeaturesHandbrake, Reverse Alarm, Jack, Toolkit, Voltage protection, Circuit Breaker
CertificationsiCAT Certified
